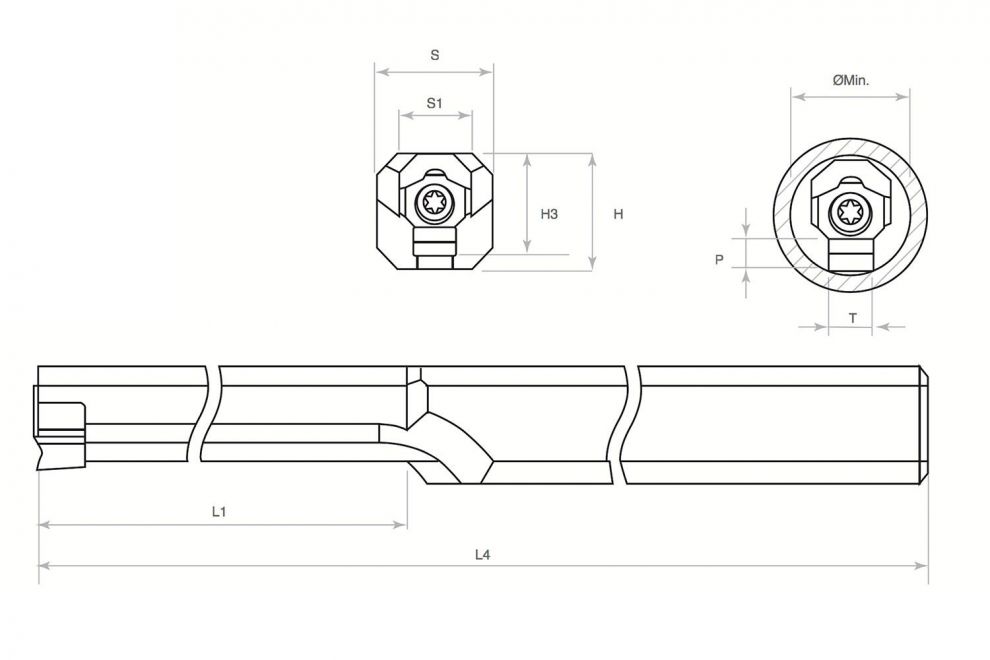

Porta inserti
| RIFERIMENTO | H | H3 | S | S1 | L1 | L4 | T | Ø min | P max | VITE INSERTO | RIFERIMENTO INSERTO |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PSZ - 06 - 01 | 11.3 | 9.3 | 11.3 | 8.2 | 35 | 165 | 3 | 9.9 | 2 | Torx-2.5x10/07P | SZ 06 04-30 |
| PSZ - 06 - 02 | 11.3 | 10 | 11.3 | 7 | 60 | 200 | 4 | 10.4 | 3 | Torx-2.5x10/07P | SZ 06 04-40 |
| 5 | 10.8 | 3.2 | SZ 06 04-50 | ||||||||
| PSZ - 10 | 15.5 | 16.2 | 12 | - | - | 220 | 6 | 17.9 | 4.9 | Torx-4x15/15P | SZ 10 06-60 |
| 8 | 18.4 | 5.2 | SZ 10 06-80 | ||||||||
| PSZ - 13 | 20.6 | 21.5 | 14 | - | - | 250 | 10 | 23.8 | 6.2 | Torx-6x18/20 | SZ 13 09-100 |
| 12 | 24.2 | 7.2 | SZ 13 09-120 |
